Enterprise 220R

A34

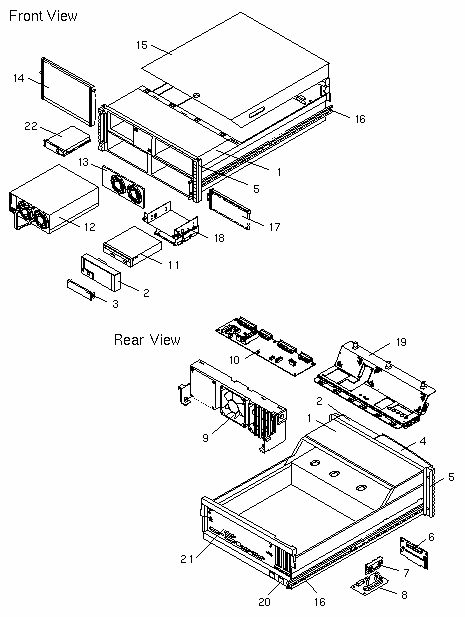

4-Slot PCI Logic Enclosure

CODE	PART #	DESCRIPTION
1 2 3 4 5 -	599-2330 540-4219 330-2400 330-2911 540-4315 540-4316	Enclosure Assembly RMA Bezel Floppy Filler Panel Curved Bezel 4U Trim Strip Enclosure Assembly with System Board
1 NS NS NS NS -	540-4316 330-2805 501-xxxx 540-4327 540-4329 540-4284	Enclosure Assembly with System Board Processor Module Slot Filler Panel Ultra 60 System Board Processor Module Cardcage Assembly Airguide Assembly Enclosure Assembly
1 6 7 8 9 10 11 12 13 NS NS NS NS NS NS NS NS -	540-4284 501-5505 300-1455 375-0094 540-4434 501-5506 370-3416 300-1449 340-6001 340-6118 530-2824 530-2826 530-2827 530-2828 530-2829 530-2830 530-2864 540-4283	Enclosure Assembly 2-Slot SCSI Disk Backplane VRM DC-DC Converter VRM Interposer Board Fan Tray with 3x 120 mm Fans DC Power Distribution Board 32x CD-ROM, Medium Grey 380 Watt Power Supply Power Supply Filler Panel Security Switch Lock Front Panel Cable RMA 8-Bit SCSI Cable SCSI Cable DC Power Cable DC Power Signal Cable Control Cable I/O Power Cable Chassis Assembly
1 14 15 16 17 18 19 20 21 NS NS NS NS 1 - - -	540-4283 540-4186 540-4188 340-6131 540-4230 540-4253 340-5834 540-4232 540-4282 370-4099 530-2819 530-2861 540-4251 540-4231 340-5827 340-5830 340-5831 340-5996 540-4185	Chassis Assembly Left Door Rear Enclosure Top Cover Inner Slide Rail Right Door Media Drive Mounting Assembly Power Distribution Board Cover AC Outlet Rear Panel AC Line Filter AC Power Cable AC Ground Cable Ultra 60 System Board Mounting Tray Chassis Assembly Base Enclosure Disk Drive Bay Front Enclosure Top Cover Front Enclosure Power Bay Cover
22 22	540-3881 540-4177	9.1GB 10000 RPM Disk Drive Assembly/FRU 18.2GB 10000 RPM Disk Drive Assembly/FRU
NS NS	370-2376 370-2882	12-24GB 4 mm DDS-3 Tape Drive, Medium Grey 7-14GB 8 mm Tape Drive, Medium Grey
NS	250-1317	Key
NS	340-6124	Short Rack Mounting Bracket
NS	340-6125	Long Rack Mounting Bracket
NS	340-5883	Outer Slide Rail
