Emulex MD21

Sun-4/260

Options 504 / 505 / 507 / 509 / 510 / 514 / 516
370-0552 / 370-1236

Power

1.6 Amps @ +5Vdc
8.0 Watts

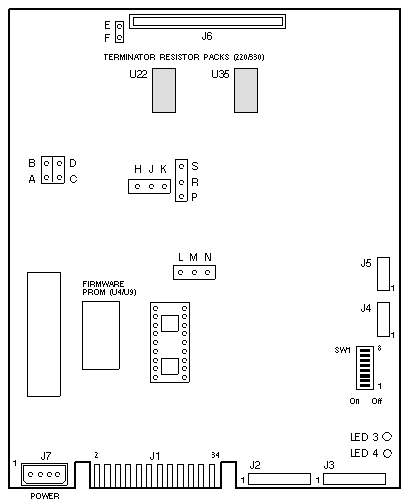

Switch and Jumper Settings

DIP
SWITCH		 SETTING DESCRIPTION
1
2
3		 Off*
Off
Off		 SCSI BUS ADDRESS/TARGET
Bit 0-7
4 Off Not used
5 Off 512 byte/sector
6 Off Power on spin-up
7 Off Soft errors reported
8 Off Parity disabled
* For DeskTop Expansion Shoebox, Dip Switch 1 is ON for Target 1.

JUMPER SETTING DESCRIPTION
E, F* Out SCSI bus termination power option
* Jumpers E and F are not on Emulex Rev MD2110103.

Note

Install termination resistor packs on the last Tape/Disk Controller on the SCSI bus.

Reference

ESDI Disk Controller Configuration Procedures, 813-2022.
