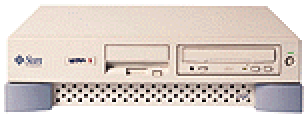

Ultra 5 (A21)

3-Slot PCI Logic Enclosure (exploded)

370-3162 200 Watt Power Supply 370-3176 4.3GB 4500 RPM EIDE Disk Drive 370-3692 4.3GB 5400 RPM EIDE Disk Drive (Ultra ATA) 370-3692 4.3GB 5400 RPM EIDE Disk Drive (Ultra ATA/66) 370-3863 8.4GB 5400 RPM EIDE Disk Drive 370-3693 9.1GB 7200 RPM EIDE Disk Drive 370-3159 Dual Density Floppy Drive 370-3319 24x CD-ROM 370-3694 32x CD-ROM 370-3196 3-Slot PCI Riser Card

CPU Board 375-0009 375-0066 375-0079

	Description
Module	270MHz UltraSPARC IIi Module 501-4477 501-5039
	333MHz UltraSPARC IIi Module 501-5090 501-5568
	360MHz UltraSPARC IIi Module 501-5148
Memory	A21 Memory 16MB DIMM 32MB DIMM 64MB DIMM 128MB DIMM 256MB DIMM
Graphics	PGX 8-Bit Color Frame Buffer
	PGX32 8/24-Bit Color Frame Buffer
	SunVideo Plus
SCSI	Single-Ended Ultra/Wide SCSI (SunSwift PCI)
	Single-Ended Ultra/Wide SCSI (PCI)
	Dual Single-Ended Ultra/Wide SCSI (PCI)
	Dual Differential Ultra/Wide SCSI (PCI)
Disk	Seagate ST34342A (4.3GB)
	Seagate ST34321A (4.3GB)
	Seagate ST34312A (4.3GB)
	Seagate ST38420A (8.4GB)
	Seagate ST39140A (9.1GB)
	IBM DJNA-370910 (9.1GB)
Removable Media	Dual Density Floppy
	24X CD-ROM
	32X CD-ROM
Ethernet	SunFastEthernet (FE/P)
	Sun Quad FastEthernet (QFE/P)
	Gigabit Ethernet 1.0 (GBE/P)
	Gigabit Ethernet 2.0 (GBE/P)
Communication	High Speed Serial Interface (HSI/P)
	Serial Asychronous Interface (SAI/P)
	Token Ring Interface (TRI/P)
	FDDI/P SAS 1.0/2.0
	FDDI/P DAS 1.0/2.0
	SunATM-155/MFiber 3.0/4.0
	SunATM-155/UTP 3.0/4.0
	SunATM-622/MFiber 3.0/4.0
Miscellaneous	SunPCi
	PCI Riser Board
IDPROM	48T59 NVRAM
Boot PROM	U2703
	Sun-4u Flash Update
