SunCD

Sun-4/330/370/390/470/490
SS600MP / SS1000 / SC2000

Options 558 / 559

370-1312 370-1347
Sony CDU-8012
Light Grey Bezel		 Sony CDU-8012
Black Bezel

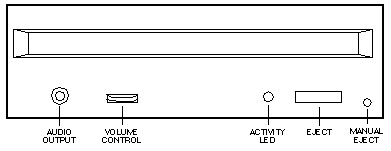

Front View

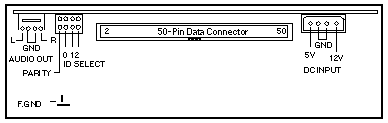

Rear View

SunCD Plus Pack, Multi-Tape Backup Tray, and
SC2000 Remote Address Cable Orientation

JUMPER SETTING DESCRIPTION
1, 2 In SCSI ID 6
Parity In Enable parity

Power

0.5 Amps @ +5Vdc
0.5 Amps @ +12Vdc
8.5 Watts

Notes

  1. The Sun CD-ROM requires 1.0 SunCD for SunOS 4.0.3c.
  2. Use 370-1347-03 when mounted on-end in the SS630MP.
