16-Slot Centerplane

E10000

501-4348

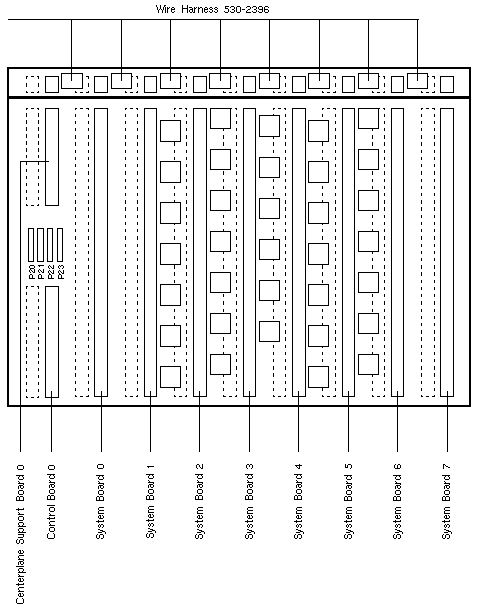

Front View

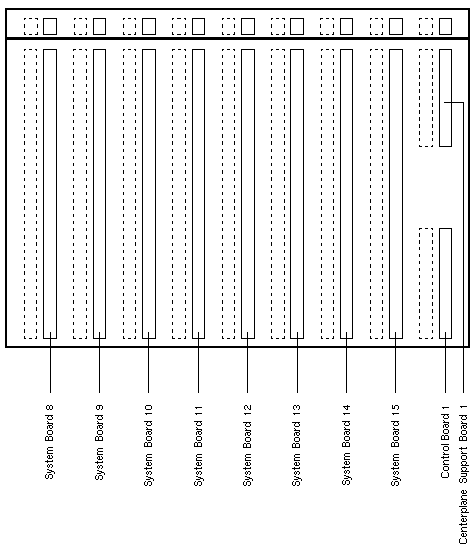

Rear View

Note

Thermal calibration is required if the Centerplane is replaced.

References

  1. E10000 System Component Replacement Guide, 805-0311.Internet Link
  2. E10000 System Service Manual, 805-2917.Internet Link
