Seagate ST3610N (535MB)

3 1/2" 5400 RPM Single Ended Fast SCSI

SS1000
Options 580 / 581 / 582

370-1424
1 5/8" Height
952002-030

Power

0.8 Amps @ +5Vdc
1.6 Amps @ +12Vdc
23.2 Watts Peak

Notes

  1. The minimum operating system is SunOS 4.1.1 Rev B.
  2. The 535MB drive supports Tagged Queuing with Solaris 2.x.

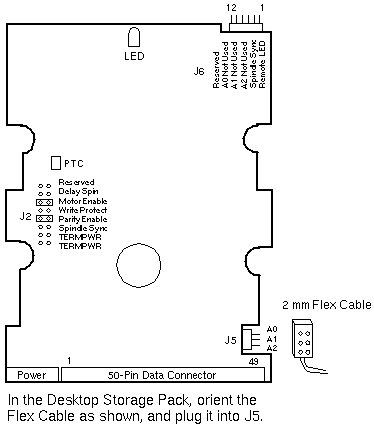

  3. The Target ID is the Boolean OR of J5 and J6. Do NOT install shunts in both locations.
  4. The Seagate drive is not supported in the 4/15/30/50/75 or SS10.

Reference

535 Mbyte Disk Drive Installation Manual, 801-5402-10.Internet Link
