Seagate ST12400N (2.1GB)

3 1/2" 5400 RPM Single Ended Fast SCSI

Sun-4/75 / SS10
Options 567 / 568 / 569 / 570

370-1709
1 5/8" Height
949001-033

Power

0.72 Amps @ +5Vdc
0.60 Amps @ +12Vdc
10.8 Watts Typical

Notes

  1. The minimum operating system is Solaris 1.1.
  2. The 2.1GB drive supports Tagged Queuing with Solaris 2.x.

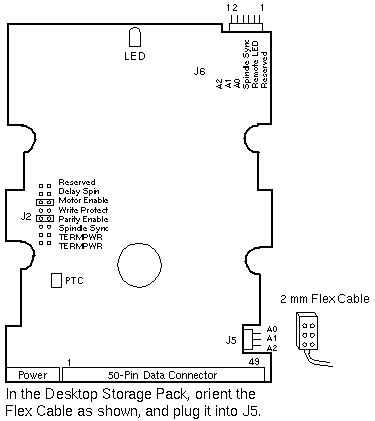

  3. The Target ID is the Boolean OR of J5 and J6. Do NOT install shunts in both locations.

References

  1. 2.1 Gbyte Disk Drive Installation Manual, 801-6118-10.Internet Link
  2. Multi-Disk Pack Installation and Service Guide, 801-6119-10.Internet Link
  3. 2.1Gbyte Disk Drive Installation Manual, 802-2703-10.Internet Link
