Desktop SunCD 2Plus Pack

579

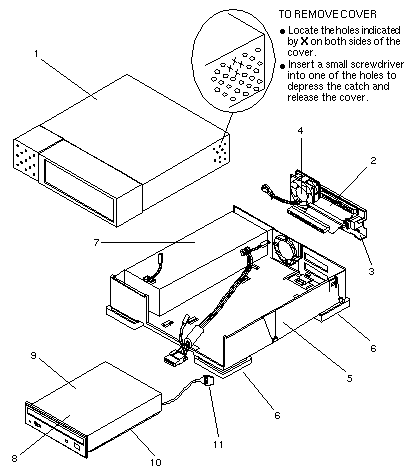

SunCD 2Plus CD-ROM

CODE PART # DESCRIPTION
1 540-1778 Cover Assembly
2
3
4
NS
NS
540-1978
150-2049
540-2185
150-1174
340-2839
Fan/SCSI Connector/Address Select FRU Assembly
Address Select Switch
Fan Assembly
2A Subminiature Fuse
Fan EMI Gasket
5
6
540-1773
330-1214
Base Assembly
Rubber Foot
7 300-1105 44 Watt Power Supply
8
9
10
11
NS
540-2522
370-1682
340-1967
530-1825
240-1530
SunCD 2Plus CD-ROM Assembly
Toshiba XM4101B CD-ROM, Grey Bezel
Drive Bracket
Address Switch Cable, 0.10" Pin Spacing, 8.5"
M3 x 6 mm Screw
NS 150-1785 External Active Terminator, HD50
NS 530-1793 External SCSI Cable, HD50 to HD50, 80 cm
NS 530-1836 External SCSI Cable, HD50 to HD50, 2.0M
NS 530-1852 External SCSI Cable, HD50 to HD50, 4.0M
NS 801-5963 SlimCD Installation and User's ManualInternet Link
