Last updated: March 15, 2000

StorEdge A1000

ARY122A-16G	ARY122A-50G	ARY124A-36G
Tabletop Option 4 4.2GB Disks 10000 RPM	Tabletop Option 12 4.2GB Disks 10000 RPM	Tabletop Option 4 9.1GB Disks 7200 RPM
ARY124A-109G	ARY131A-16G	ARY133A-36G
Tabletop Option 12 9.1GB Disks 7200 RPM	72" Rack Option w/o Rack 4 4.2GB Disks 10000 RPM	72" Rack Option w/o Rack 12 4.2GB Disks 10000 RPM
ARY144A-36G	ARY144A-109G	ARY146A-36G
Tabletop Option 4 9.1GB Disks 10000 RPM	Tabletop Option 12 9.1GB Disks 10000 RPM	72" Rack Option w/o Rack 4 9.1GB Disks 10000 RPM
ARY151A-72G	ARY151A-218G	ARY152A-72G
Tabletop Option 4 18.2GB Disks 10000 RPM	Tabletop Option 12 18.2GB Disks 10000 RPM	72" Rack Option w/o Rack 4 18.2GB Disks 10000 RPM

ARY152A-218G
72" Rack Option w/o Rack 12 18.2GB Disks 10000 RPM

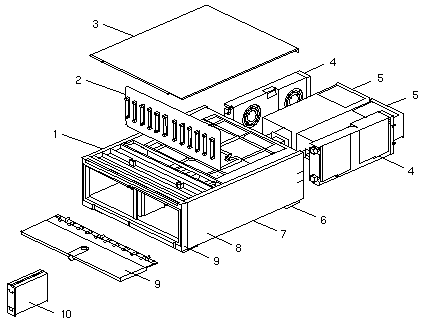

CODE PART # DESCRIPTION

1
1 540-3269
540-3325 Empty 12-Drive Chassis Assembly
Empty Chassis Assembly

2 501-4440 12-Slot SCSI Disk Backplane

3 330-2535 Top Cover

4 540-3323 Fan Tray

5 300-1340 360 Watt Power Supply

6 330-2000 Foot

7 330-2267 Bottom Cover

8 330-2266 Vented Side Panel

9 540-3324 Front Door Assembly (-01 w Frame -02 w/o Frame)

10
-
-
-
- 540-3594
340-4288
370-3338
390-0003
540-3024 4.2GB 10000 RPM Disk Drive Assembly/FRU
Protective Plate
4.2GB Disk Drive, Seagate ST34501WC
4.2GB Disk Drive, Seagate ST34502LC
1.0" Spud Bracket

10
-
-
-
-
-
- 540-3720
340-4288
370-3404
370-3413
370-3595
390-0004
540-3024 9.1GB 7200 RPM Disk Drive Assembly/FRU
Protective Plate
9.1GB Disk Drive, IBM DDRS-39130
9.1GB Disk Drive, Fujitsu MAB3091SC
9.1GB Disk Drive, Seagate ST39173WC
9.1GB Disk Drive, Fujitsu MAE3091LC
1.0" Spud Bracket

10
-
-
-
-
- 540-3966
340-4288
370-3649
390-0005
390-0009
540-3024 9.1GB 10000 RPM Disk Drive Assembly/FRU
Protective Plate
9.1GB Disk Drive, Seagate ST39102LC
9.1GB Disk Drive, Fujitsu MAG3091LC
9.1GB Disk Drive, Seagate ST39103LC
1.0" Spud Bracket

10
-
-
-
- 540-4178
340-4288
390-0002
390-0006
540-3024 18.2GB 10000 RPM Disk Drive Assembly/FRU
Protective Plate
18.2GB Disk Drive, Seagate ST318203LC
18.2GB Disk Drive, Fujitsu MAG3182LC
1.0" Spud Bracket

10 370-3290 Empty 1.0" Disk Drive Slot Filler

NS
NS
-
- 375-0015
375-0016
375-0007
370-3417 RAID Controller FRU, 16MB MPU + 64MB RPA
RAID Controller FRU, 8MB MPU + 16MB RPA
RAID Controller Board
Battery

NS 150-1890 Differential Terminator, HD68

NS 240-2690 A1000/D1000 Key

NS 330-1999 Top/Bottom Cover Plug

NS 340-4469 A1000/D1000 Tray

NS 340-4470 A1000/D1000 Rack Mounting Bracket (x2)

NS 340-4471 A1000/D1000 Right Clamp

NS 340-4472 A1000/D1000 Left Clamp

NS 530-1885 External SCSI Cable, HD68 to HD68, 2M

NS 530-2384 External SCSI Cable, HD68 to HD68, 2M

NS 805-2624 A1000/D1000 Installation/Operation/Service Manual

CODE	PART #	DESCRIPTION
1 1	540-3269 540-3325	Empty 12-Drive Chassis Assembly Empty Chassis Assembly
2	501-4440	12-Slot SCSI Disk Backplane
3	330-2535	Top Cover
4	540-3323	Fan Tray
5	300-1340	360 Watt Power Supply
6	330-2000	Foot
7	330-2267	Bottom Cover
8	330-2266	Vented Side Panel
9	540-3324	Front Door Assembly (-01 w Frame -02 w/o Frame)
10 - - - -	540-3594 340-4288 370-3338 390-0003 540-3024	4.2GB 10000 RPM Disk Drive Assembly/FRU Protective Plate 4.2GB Disk Drive, Seagate ST34501WC 4.2GB Disk Drive, Seagate ST34502LC 1.0" Spud Bracket
10 - - - - - -	540-3720 340-4288 370-3404 370-3413 370-3595 390-0004 540-3024	9.1GB 7200 RPM Disk Drive Assembly/FRU Protective Plate 9.1GB Disk Drive, IBM DDRS-39130 9.1GB Disk Drive, Fujitsu MAB3091SC 9.1GB Disk Drive, Seagate ST39173WC 9.1GB Disk Drive, Fujitsu MAE3091LC 1.0" Spud Bracket
10 - - - - -	540-3966 340-4288 370-3649 390-0005 390-0009 540-3024	9.1GB 10000 RPM Disk Drive Assembly/FRU Protective Plate 9.1GB Disk Drive, Seagate ST39102LC 9.1GB Disk Drive, Fujitsu MAG3091LC 9.1GB Disk Drive, Seagate ST39103LC 1.0" Spud Bracket
10 - - - -	540-4178 340-4288 390-0002 390-0006 540-3024	18.2GB 10000 RPM Disk Drive Assembly/FRU Protective Plate 18.2GB Disk Drive, Seagate ST318203LC 18.2GB Disk Drive, Fujitsu MAG3182LC 1.0" Spud Bracket
10	370-3290	Empty 1.0" Disk Drive Slot Filler
NS NS - -	375-0015 375-0016 375-0007 370-3417	RAID Controller FRU, 16MB MPU + 64MB RPA RAID Controller FRU, 8MB MPU + 16MB RPA RAID Controller Board Battery
NS	150-1890	Differential Terminator, HD68
NS	240-2690	A1000/D1000 Key
NS	330-1999	Top/Bottom Cover Plug
NS	340-4469	A1000/D1000 Tray
NS	340-4470	A1000/D1000 Rack Mounting Bracket (x2)
NS	340-4471	A1000/D1000 Right Clamp
NS	340-4472	A1000/D1000 Left Clamp
NS	530-1885	External SCSI Cable, HD68 to HD68, 2M
NS	530-2384	External SCSI Cable, HD68 to HD68, 2M
NS	805-2624	A1000/D1000 Installation/Operation/Service Manual
