| ARY126A-72G | ARY126A-144G | ARY135A-72G |
|---|---|---|
| Tabletop Option 4 18.2GB Disks 7200 RPM |
Tabletop Option 8 18.2GB Disks 7200 RPM |
72" Rack Option w/o Rack 4 18.2GB Disks 7200 RPM |
| ARY161A-145G | ARY161A-291G | ARY162A-145G |
| Tabletop Option 4 36.4GB Disks 10000 RPM |
Tabletop Option 8 36.4GB Disks 10000 RPM |
72" Rack Option w/o Rack 4 36.4GB Disks 10000 RPM |

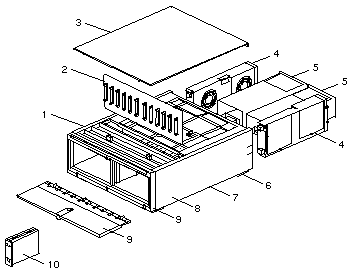

| CODE | PART # | DESCRIPTION |
|---|---|---|
| 1 1 1 |
540-3270 540-3761 540-3325 |
Empty 8-Drive Chassis Assembly Empty 8-Drive Chassis with Rack Mount Tray Empty Chassis Assembly |
| 2 | 501-4560 | 8-Slot SCSI Disk Backplane |
| 3 | 330-2535 | Top Cover |
| 4 | 540-3323 | Fan Tray |
| 5 | 300-1340 | 360 Watt Power Supply |
| 6 | 330-2000 | Foot |
| 7 | 330-2267 | Bottom Cover |
| 8 | 330-2266 | Vented Side Panel |
| 9 | 540-3324 | Front Door Assembly (-01 w Frame -02 w/o Frame) |
| 10 - - - |
540-3721 370-3414 370-3596 540-3025 |
18.2GB 7200 RPM Disk Drive Assembly/FRU 18.2GB Disk Drive, Fujitsu MAA3182SC18.2GB Disk Drive, Seagate ST118273LC1.6" Spud Bracket |
| 10 - - - |
540-4263 390-0014 390-0020 540-3025 |
36.4GB 10000 RPM Disk Drive Assembly/FRU36.4GB Disk Drive, Fujitsu36.4GB Disk Drive, Seagate1.6" Spud Bracket |
| 10 | 370-3291 | Empty 1.6" Disk Drive Slot Filler |
| NS NS - - |
375-0015 375-0016 375-0007 370-3417 |
RAID Controller FRU, 16MB MPU + 64MB RPA RAID Controller FRU, 8MB MPU + 16MB RPA RAID Controller BoardBattery |
| NS | 330-1999 | Top/Bottom Cover Plug |
| NS | 240-2690 | A1000/D1000 Key |
| NS | 150-1890 | Differential Terminator, HD68 |
| NS | 530-1885 | External SCSI Cable, HD68 to HD68, 2M |
| NS | 340-4469 | A1000/D1000 Tray |
| NS | 340-4470 | A1000/D1000 Rack Mounting Bracket (x2) |
| NS | 340-4471 | A1000/D1000 Right Clamp |
| NS | 340-4472 | A1000/D1000 Left Clamp |
| NS | 805-2624 |
A1000/D1000 Installation/Operation/Service Manual |
