Last updated: November 26, 1999

RSM Array 2000 / StorEdge A3000

6530	6531	6532
5 RSM Trays 15 4.2GB Disks 5400 RPM	5 RSM Trays 35 4.2GB Disks 5400 RPM	5 RSM Trays 15 4.2GB Disks 7200 RPM
6533	6534	6535
5 RSM Trays 35 4.2GB Disks 7200 RPM	5 RSM Trays 15 4.2GB Disks 7200 RPM	5 RSM Trays 35 9.1GB Disks 7200 RPM

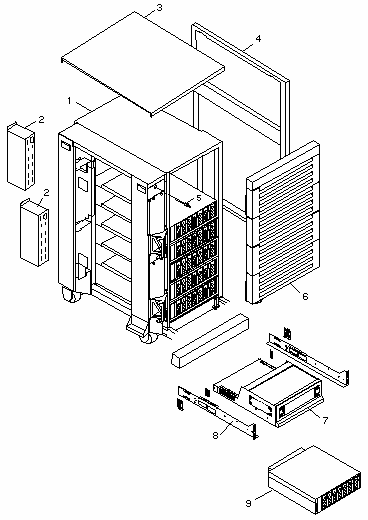

CODE PART # DESCRIPTION

1
2
3
4
5
6
NS
NS 540-2809
300-1290
340-3352
340-3354
540-2393
540-2810
530-2265
530-2266 56-inch Enterprise Expansion Cabinet Assembly
Universal Power Sequencer
Top Panel, Medium Grey
Side Panel, Medium Grey
Keyswitch Assembly
Door Assembly
AC Power Cord, Harting Han 6HsB to NEMA L6-30P
AC Power Cord, Harting Han 6HsB to IEC 309

7
7
-
-
-
-
-
-
-
8 370-2408
370-2431
370-2869
370-2436
370-2432
370-2435
540-3600
370-2434
370-2433
370-2437 RSM Array 2000/StorEdge A3000 Assembly
Chassis with Backplane FRU
Power Supply Chassis Assembly
Power Supply
Power Supply Fan Assembly
Differential SCSI Array Controller without Memory
Differential SCSI Array Controller with Memory
Battery Assembly
Differential SCSI Array Controller Fan Assembly
Mounting Rail Set

9
9
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS -
-
370-2198
540-2784
540-2939
540-2942
340-3627
530-1885
530-1886
530-2197
530-2236
530-2264 RSM with 3x 4.2GB Disk Drives per Tray
RSM with 7x 4.2GB Disk Drives per Tray
SPARCstorage RSM Chassis FRU
4.2GB 5400 RPM Disk Drive Assembly/FRU
4.2GB 7200 RPM Disk Drive Assembly/FRU
9.1GB 7200 RPM Disk Drive Assembly/FRU
SPARCstorage RSM Shipping Bracket
External SCSI Cable, HD68 to HD68, 2.0 M
External SCSI Cable, HD68 to HD68, 12.0 M
AC Power Cord, AMP Mate-N-Lok to IEC-320
Remote Keyswitch Control Cable, 3.2M
AC Power Cord, AMP Mate-N-Lok to Y IEC-320

CODE	PART #	DESCRIPTION
1 2 3 4 5 6 NS NS	540-2809 300-1290 340-3352 340-3354 540-2393 540-2810 530-2265 530-2266	56-inch Enterprise Expansion Cabinet Assembly Universal Power Sequencer Top Panel, Medium Grey Side Panel, Medium Grey Keyswitch Assembly Door Assembly AC Power Cord, Harting Han 6HsB to NEMA L6-30P AC Power Cord, Harting Han 6HsB to IEC 309
7 7 - - - - - - - 8	370-2408 370-2431 370-2869 370-2436 370-2432 370-2435 540-3600 370-2434 370-2433 370-2437	RSM Array 2000/StorEdge A3000 Assembly Chassis with Backplane FRU Power Supply Chassis Assembly Power Supply Power Supply Fan Assembly Differential SCSI Array Controller without Memory Differential SCSI Array Controller with Memory Battery Assembly Differential SCSI Array Controller Fan Assembly Mounting Rail Set
9 9 NS NS NS NS NS NS NS NS NS NS	- - 370-2198 540-2784 540-2939 540-2942 340-3627 530-1885 530-1886 530-2197 530-2236 530-2264	RSM with 3x 4.2GB Disk Drives per Tray RSM with 7x 4.2GB Disk Drives per Tray SPARCstorage RSM Chassis FRU 4.2GB 5400 RPM Disk Drive Assembly/FRU 4.2GB 7200 RPM Disk Drive Assembly/FRU 9.1GB 7200 RPM Disk Drive Assembly/FRU SPARCstorage RSM Shipping Bracket External SCSI Cable, HD68 to HD68, 2.0 M External SCSI Cable, HD68 to HD68, 12.0 M AC Power Cord, AMP Mate-N-Lok to IEC-320 Remote Keyswitch Control Cable, 3.2M AC Power Cord, AMP Mate-N-Lok to Y IEC-320
