| ARY123A-16G | ARY123A-50G | ARY125A-36G |
|---|---|---|
| Tabletop Option 4 4.2GB Disks 10000 RPM |
Tabletop Option 12 4.2GB Disks 10000 RPM |
Tabletop Option 4 9.1GB Disks 7200 RPM |
| ARY125A-109G | ARY132A-16G | ARY134A-36G |
| Tabletop Option 12 9.1GB Disks 7200 RPM |
72" Rack Option w/o Rack 4 4.2GB Disks 10000 RPM |
72" Rack Option w/o Rack 12 4.2GB Disks 10000 RPM |
| ARY145A-36G | ARY145A-109G | ARY147A-36G |
| Tabletop Option 4 9.1GB Disks 10000 RPM |
Tabletop Option 12 9.1GB Disks 10000 RPM |
72" Rack Option w/o Rack 4 9.1GB Disks 10000 RPM |
| ARY153A-72G | ARY153A-218G | ARY154A-72G |
| Tabletop Option 4 18.2GB Disks 10000 RPM |
Tabletop Option 12 18.2GB Disks 10000 RPM |
72" Rack Option w/o Rack 4 18.2GB Disks 10000 RPM |
| ARY154A-218G |
|---|
| 72" Rack Option w/o Rack 12 18.2GB Disks 10000 RPM |

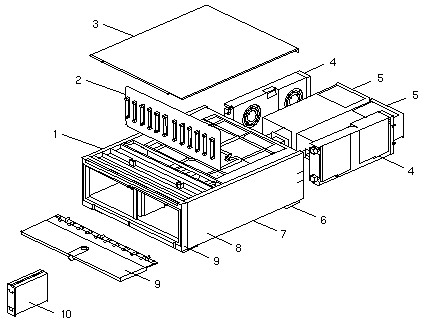

| CODE | PART # | DESCRIPTION |
|---|---|---|
| 1 1 |
540-3269 540-3325 |
Empty 12-Drive Chassis Assembly Empty Chassis Assembly |
| 2 | 501-4440 | 12-Slot SCSI Disk Backplane |
| 3 | 330-2535 | Top Cover |
| 4 | 540-3323 | Fan Tray |
| 5 | 300-1340 | 360 Watt Power Supply |
| 6 | 330-2000 | Foot |
| 7 | 330-2267 | Bottom Cover |
| 8 | 330-2266 | Vented Side Panel |
| 9 | 540-3324 | Front Door Assembly (-01 w Frame -02 w/o Frame) |
| 10 - - - - |
540-3594 340-4288 370-3338 390-0003 540-3024 |
4.2GB 10000 RPM Disk Drive Assembly/FRU Protective Plate4.2GB Disk Drive, Seagate ST34501WC4.2GB Disk Drive, Seagate ST34502LC1.0" Spud Bracket |
| 10 - - - - - - |
540-3720 340-4288 370-3404 370-3413 370-3595 390-0004 540-3024 |
9.1GB 7200 RPM Disk Drive Assembly/FRUProtective Plate9.1GB Disk Drive, IBM DDRS-391309.1GB Disk Drive, Fujitsu MAB3091SC9.1GB Disk Drive, Seagate ST39173WC9.1GB Disk Drive, Fujitsu MAE3091LC1.0" Spud Bracket |
| 10 - - - - - |
540-3966 340-4288 370-3649 390-0005 390-0009 540-3024 |
9.1GB 10000 RPM Disk Drive Assembly/FRUProtective Plate9.1GB Disk Drive, Seagate ST39102LC9.1GB Disk Drive, Fujitsu MAG3091LC9.1GB Disk Drive, Seagate ST39103LC1.0" Spud Bracket |
| 10 - - - - |
540-4178 340-4288 390-0002 390-0006 540-3024 |
18.2GB 10000 RPM Disk Drive Assembly/FRUProtective Plate18.2GB Disk Drive, Seagate ST318203LC18.2GB Disk Drive, Fujitsu MAG3182LC1.0" Spud Bracket |
| 10 | 370-3290 | Empty 1.0" Disk Drive Slot Filler |
| NS | 150-1890 | Differential Terminator, HD68 |
| NS | 240-2690 | A1000/D1000 Key |
| NS | 330-1999 | Top/Bottom Cover Plug |
| NS | 330-2270 | Door Frame |
| NS | 375-0008 | Differential SCSI Controller Board |
| NS | 530-1883 | External SCSI Cable, HD68 to HD68, 20 cm |
| NS | 530-2384 | External SCSI Cable, HD68 to HD68, 2M |
| NS | 340-4469 | A1000/D1000 Tray |
| NS | 340-4470 | A1000/D1000 Rack Mounting Bracket (x2) |
| NS | 340-4471 | A1000/D1000 Right Clamp |
| NS | 340-4472 | A1000/D1000 Left Clamp |
| NS | 805-2624 |
A1000/D1000 Installation/Operation/Service Manual |
Note: Option ARY123A-50G was originally price listed as ARY023A-50G.
