StorEdge A3500

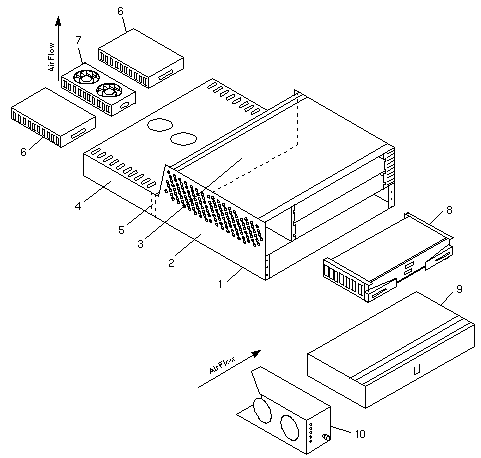

CODE	PART #	DESCRIPTION
1 1 2 3 - 4 5 - -	380-0083 370-2431 None None 370-2724 370-2869 None 370-2870 370-2871	StorEdge A3000 Assembly Chassis with Backplane FRU Logic Chassis Assembly Logic Chassis Backplane Ribbon Cable, Battery to Backplane Power Supply Chassis Assembly Power Supply Chassis Backplane Power Supply Interface Cable Power Supply DC Power Cable
6	370-2436	Power Supply
7	370-2432	Power Supply Fan Assembly
8 8	370-3656 540-3083	Differential SCSI Array Controller without Memory Differential SCSI Array Controller with Memory
9	370-2434	Battery Assembly
10	370-2433	Differential SCSI Array Controller Fan Assembly
NS - - -	370-2437 None None None	Mounting Rail Set (370-2437-02 recommended) Left Rail and Right Rail Rear Mounting Bracket (x2) #8-32 x 7/16" Screw
NS	370-2438	8MB Processor Memory SIMM
NS	370-2439	32MB Cache Memory SIMM
NS	150-1890	Differential Terminator, HD68
NS	530-1351	230V AC Power Cord, IEC-320 to NEMA 6-15
NS	530-1343	240V AC Power Cord, IEC-320 to Reverse IEC-320
NS	530-1885	External SCSI Cable, HD68 to HD68, 2.0 M
NS	530-1886	External SCSI Cable, HD68 to HD68, 12.0 M
NS	530-2197	AC Power Cord, AMP Mate-N-Lok to IEC-320
NS	530-2264	AC Power Cord, AMP Mate-N-Lok to Y IEC-320
NS - - -	565-1397 370-2724 370-2870 370-2871	Cable FRU Kit Ribbon Cable, Battery to Backplane Power Supply Interface Cable Power Supply DC Power Cable
NS	805-4980	StorEdge A3000 Controller Module Guide
