| ARY513A-254G | ARY513A-509G | ARY513A-764G |
|---|---|---|
|
72" Rack Option 2 A5000s 28 9.1GB Disks 7200 RPM |
72" Rack Option 4 A5000s 56 9.1GB Disks 7200 RPM |
72" Rack Option 6 A5000s 84 9.1GB Disks 7200 RPM |

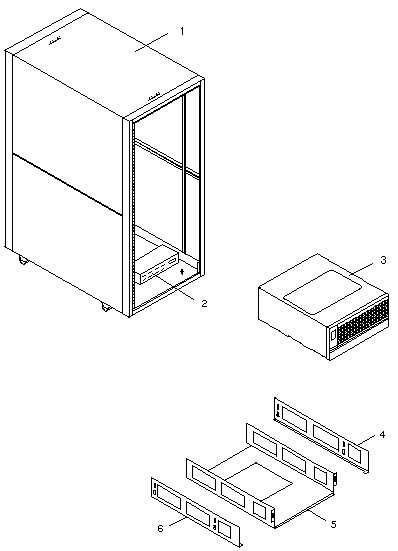

| CODE | PART # | DESCRIPTION |
|---|---|---|
| 1 | 540-3707 | 72-inch StorEdge Expansion Cabinet |
| 2 | 300-1290 | Universal Power Sequencer |
| NS | 530-1619 | Grounding Cable |
| NS | 530-2674 | Power Cord, Harting Han 6HsB to NEMA L6-30P |
| NS | 530-2675 | Power Cord, Harting Han 6HsB to IEC309 |
| NS | 540-3887 | Fan Assembly |
| 3 - - - |
- 540-3912 540-3249 540-3852 |
StorEdge A5000 14x 9.1GB Disks per Tray  StorEdge A5000 Chassis without Skins9.1GB 7200 RPM Disk Drive Assembly/FRU9.1GB 7200 RPM Disk Drive Assembly/FRU |
| 4 | 340-5262 | Right Mounting Rail |
| 5 5 |
340-5264 340-5265 |
Right Tray Left Tray |
| 6 | 370-5263 | Left Mounting Rail |
| NS | 340-3627 | Shipping Bracket |
| NS | 340-3899 | FC100 Hub Mounting Bracket |
| NS | 370-3012 | FC100 Hub |
| NS | 370-3592 | AC Power Cord, AMP Mate-N-Lok to IEC-320 |
| NS | 530-2236 | Remote Keyswitch Control Cable, 3.2M |
| NS | 530-2264 | AC Power Cord, AMP Mate-N-Lok to Y IEC-320 |
| NS | 537-1004 | Fibre Optical Cable, 2M |
| NS | 537-1006 | Fibre Optical Cable, 15M |
