Enterprise Network Array A5000
StorEdge A5000

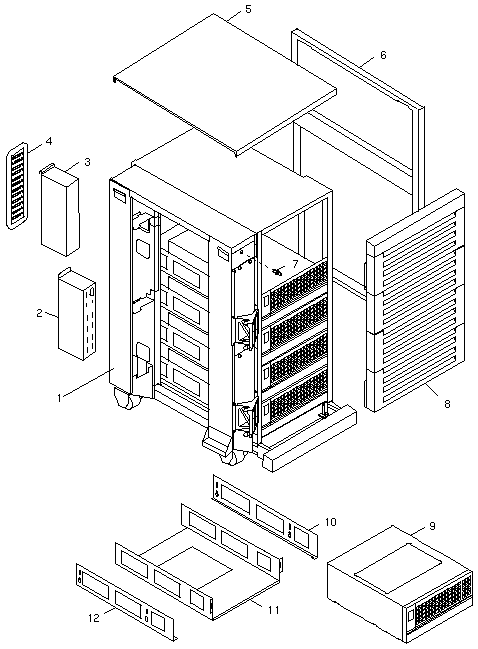

CODE	PART #	DESCRIPTION
1 2 3 4 5 6 7 8	540-2809 300-1290 540-2709 340-3267 340-3352 340-3354 540-2393 540-2810	56-inch Enterprise Expansion Cabinet Assembly Universal Power Sequencer Fan Tray Assembly Fan Tray Rear Cover Top Panel, Medium Grey Side Panel, Medium Grey Keyswitch Assembly Door Assembly
NS	530-2265	AC Power Cord, Harting Han 6HsB to NEMA L6-30P
NS	530-2266	AC Power Cord, Harting Han 6HsB to IEC 309
NS - - - -	f540-3701 240-3043 240-3044 340-4881 340-4884	EMI Retrofit Kit 1 Front EMI Fingers for A5000 Chassis Rear EMI Fingers for A5000 Chassis Front Door Lower Front Kick Panel
9 - NS	- 540-3028 540-3249 540-3852	StorEdge A5000 14x 9.1GB Disks per Tray StorEdge A5000 Chassis without Skins 9.1GB 7200 RPM Disk Drive Assembly/FRU 9.1GB 7200 RPM Disk Drive Assembly/FRU
10	340-4042	Right Mounting Bracket
11	340-4044	Tray
12	370-4043	Left Mounting Bracket
NS	340-3627	Shipping Bracket
NS	530-2197	AC Power Cord, AMP Mate-N-Lok to IEC-320
NS	530-2236	Remote Keyswitch Control Cable, 3.2M
NS	530-2264	AC Power Cord, AMP Mate-N-Lok to Y IEC-320
NS	537-1004	Fibre Optical Cable, 2M
NS	537-1006	Fibre Optical Cable, 15M
