Quantum 105S (104MB)
3 1/2" 3600 RPM Single Ended SCSI
Sun-4/60/65
Option 550
370-1200
1 5/8" Height

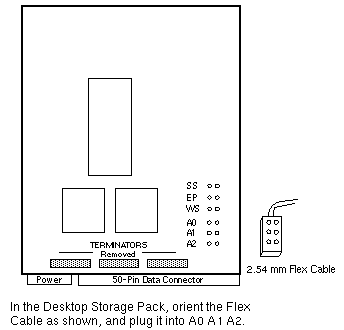

JUMPER
SETTING
DESCRIPTION
USAGE
SS
Out
Spindle sync
Not used
EP
Out
Parity
Not used
WS
Out
Wait spin
Not used
A0,A1,A2
Out
Drive ID
Target 0
A0
In
Drive ID
Target 1
A1
In
Drive ID
Target 2
A0,A1
In
Drive ID
Target 3
Power
0.7 Amps @ +5Vdc
0.5 Amps @ +12Vdc
9.5 Watts
Reference
Sun-3/80 Internal Disk Drive Installation Manual,
813-1064.
