Quantum 210S (207MB)

3 1/2" 3600 RPM Single Ended SCSI
Sun-4/40/50/75 / SS10

Options 552 / 553

370-1327 370-1376
1 5/8" Height 1 5/8" Height

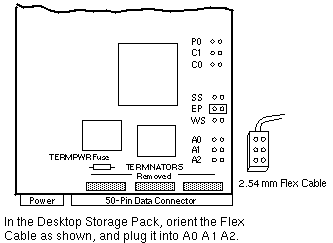

JUMPER SETTING DESCRIPTION USAGE
SS Out Spindle sync Not used
EP In Parity Enable parity
WS Out Wait spin Not used
A0,A1,A2 Out Drive ID Target 0
A0 In Drive ID Target 1
A1 In Drive ID Target 2
A0,A1 In Drive ID Target 3

Power

0.7 Amps @ +5Vdc
0.7 Amps @ +12Vdc
11.9 Watts

Notes

  1. Remove the TERMPWR fuse when installing the drive in an SS10.
  2. The Sun-4/60 or Sun-4/65 chassis does not provide adequate cooling for the 207MB Disk Drive.

References

  1. SPARCstation IPC Installation Guide, 800-5037-10.Internet Link
  2. SPARCstation IPC Installation Guide, 800-5565-10.Internet Link
  3. Installing SPARCstation 2 Internal Disk Drives, 800-5661-10.Internet Link
