CDC 94171-327/344 (327MB)

5 1/4" 3600 RPM Single Ended SCSI

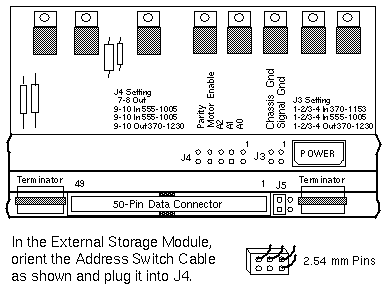

Options 526 / 527 / 530 / 539

555-1005 370-1153 370-1230
w Bracket
w/o Bezel
77777107		 w/o Bracket
w/o Bezel
77777107
3 1/4" Height		 w/o Bracket
w Bezel
77777126
3 1/4" Height

Notes

  1. Remove the terminators from the underside of the drive.
  2. Terminate the SS630MP on the SCSI-Out PCB with terminator 120-1608-01.

Format Utility Notes

  1. The 94171-327 has fewer cylinders than the 94171-344.
  2. Solaris 2.x includes an entry for the 94171-327 in format.dat.
    Remove the comment symbol "#" to use the entry.
  3. The SunOS 4.x format utility fails if the 94171-327 is used with the standard format.dat entry on any system other than a Sun386i.
  4. Use the following format.dat entry for the 94171-327 on SunOS 4.x.

    disk_type = "CDC Wren IV 94171-327" \
    : ctlr = SCSI : fmt_time = 4 : cache = 0x11: trks_zone = 9 \
    : asect = 3 : ncyl = 1520 : acyl = 2 : pcyl = 1549 : nhead = 9 \
    : nsect = 46 : rpm = 3600 : bpt = 20833

References

  1. 327MB Embedded SCSI Configuration Procedures, 814-1015-01.
  2. 5 1/4-Inch Disk Drive Installation Manual, 813-1055-10.Internet Link
  3. Sun 327 Mbyte SCSI Disk Configuration Manual, 813-2048-03.Internet Link
