Last updated: November 26, 1999

Maxtor XT-8760S (669MB)

5 1/4" 3600 RPM Single Ended SCSI

Options 561 / 563 / 565 / 566

370-1319	370-1326	555-1151
1098618-B Black Bezel Green LED 3 1/4" Height	1098778-B No Bezel No LED 3 1/4" Height	FS0019-01- 6 No Bezel No LED w Bracket

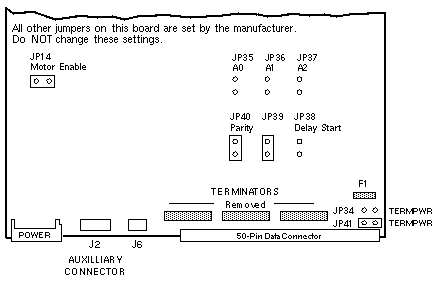

Bottom View

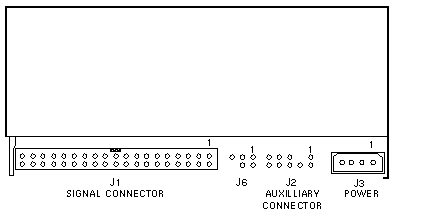

End View

Address Description

The address is set on the J2 Adapter installed in the J2 Auxiliary connector, the Address Select switch on the External Storage Module, or on Jumpers JP35, JP36, and JP37. Set the address at only one location.

J2 Adapter Circuitry	External Storage Module
		Orient Pin-1 of Address Select Switch Cable 530-1659 with ID4 on the J2 Adapter.

Notes

Drive address selection cannot be set on Auxiliary Connector J2 unless the adapter is installed.
The J2 Adapter must be installed in order for the ID Select Switch on the External Storage Module to function
The Maxtor drive does not fit into the lower drive position of External Storage Modules manufactured prior to October 1990. Remove the vertical stop block with 10-Inch End Cutter 250-1074-01.

References

5-1/4" SCSI Disk Drive Installation and Configuration for Sun Office Pedestals, 813-2048-11.
Revised Removal/Replacement Procedures for Sun ESM and EEM Storage Units, 814-3044-01.
