Micropolis 1588-15 (669MB)

5 1/4" 3600 RPM Single Ended SCSI

Options 561 / 563 / 565 / 566

370-1319	370-1326	555-1151
FS0013-03-5 Black Bezel Green LED 3 1/4" Height	FS0019-01-6 No Bezel No LED 3 1/4" Height	FS0019-01-6 No Bezel No LED w Bracket

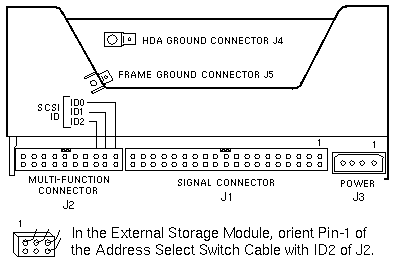

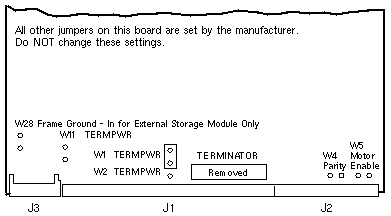

Bottom View End View

References

1. 5-1/4" SCSI Disk Drive Installation and Configuration for Sun Office Pedestals, 813-2048-11.
2. Revised Removal/Replacement Procedures for Sun ESM and EEM Storage Units, 814-3044-01.
