Seagate ST11200N (1.05GB)

3 1/2" 5400 RPM Single Ended Fast SCSI

Sun-4/15/30/75 / SS10
Options 545 / 546 / 547

370-1546 540-2420 595-2996
1 5/8" Height
947001-033		 SS10 X546A

Power

0.8 Amps @ +5Vdc
1.0 Amps @ +12Vdc
11.0 Watts Typical

Notes

  1. The minimum operating system is SunOS 4.1.1 Rev B.
  2. The 1.05GB drive supports Tagged Queuing with Solaris 2.x.
  3. SunOS 4.1.1 Rev B Sun-4c requires the 1.3GB Disk Drive Enhancement (esp.o and sd.o).

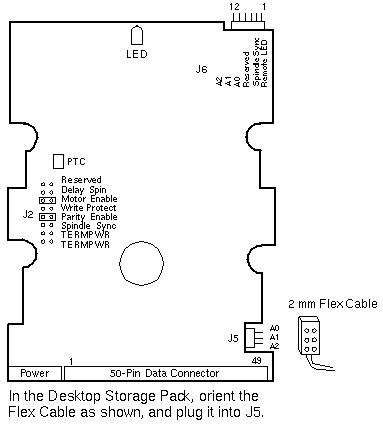

  4. The Target ID is the Boolean OR of J5 and J6. Do NOT install in both locations.

Reference

1.05 Gbyte Disk Drive Installation Manual, 801-2349-10Internet Link
