Seagate ST31200N (1.05GB)

3 1/2" 5400 RPM Single Ended Fast SCSI

Sun-4/15/30/75 / SS10 / SS1000
Options 545 / 546 / 771 / 773

370-1710
1" Height
950001-035

Power

0.73 Amps @ +5Vdc
0.40 Amps @ +12Vdc
8.45 Watts Typical

Notes

  1. The minimum operating system is SunOS 4.1.1 Rev B.
  2. The 1.05GB drive supports Tagged Queuing with Solaris 2.X.
  3. SunOS 4.1.1 Rev B Sun-4c requires the 1.3GB Disk Drive Enhancement (esp.o and sd.o).

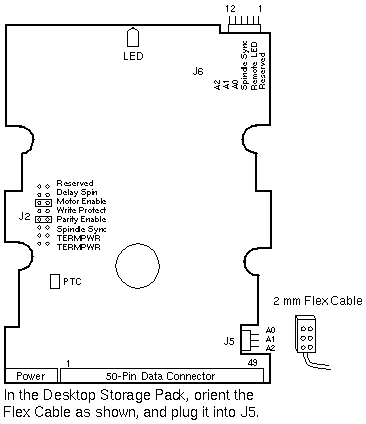

  4. The Target ID is the Boolean OR of J5 and J6. Do NOT install shunts in both locations.

Reference

1.05 Gbyte Disk Drive Installation Manual, 801-6131-10.Internet Link
