822 |
---|
5.0GB 4 mm Tape |

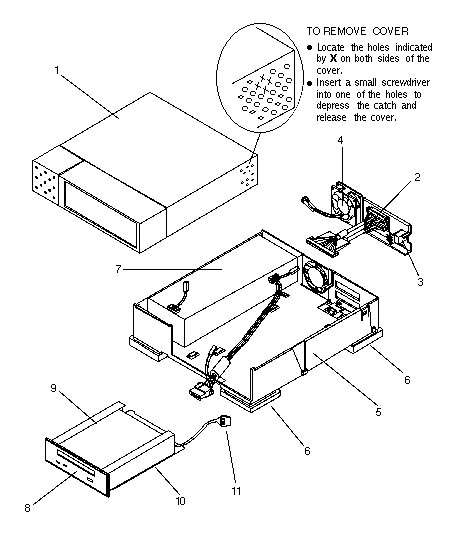

CODE | PART # | DESCRIPTION |
---|---|---|
1 | 540-1778 | Tape Drive Cover Assembly |
2 3 4 NS NS NS |
540-2470 150-2049 540-2185 150-1174 340-2839 530-1844 |
Fan/SCSI Cable/Address Select Assembly![]() ![]() ![]() ![]() ![]() |
5 6 |
540-1773 330-1214 |
Base Assembly![]() |
7 | 300-1105 | 44 Watt Power Supply |
8 9 10 NS 11 |
540-2451 370-1571 340-1967 240-1141 530-1825 |
4 mm Tape Drive Assembly![]() ![]() ![]() ![]() |
NS | 150-1785 | External Active Terminator, HD50 |
NS | 370-1612 | Blank Tape, DG-90M, 90meter/925feet |
NS | 370-1613 | Cleaning Tape |
NS | 530-1793 | External SCSI Cable, HD50 to HD50, 80 cm |
NS | 530-1836 | External SCSI Cable, HD50 to HD50, 2.0M |
NS | 530-1852 | External SCSI Cable, HD50 to HD50, 4.0M |
NS | 800-4895 |
Desktop Storage Pack Field Service Manual![]() |
