834 | 844 |
---|---|
10GB 8 mm Tape | 14GB 8 mm Tape |

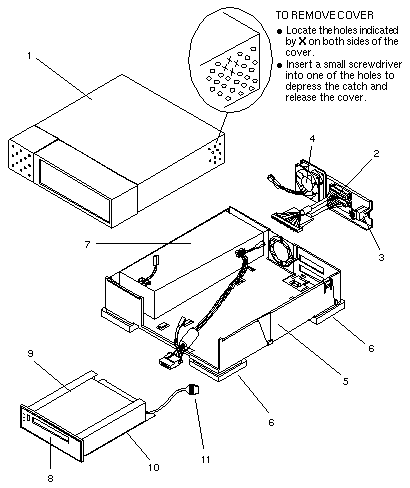

CODE | PART # | DESCRIPTION |
---|---|---|
1 | 540-1778 | Tape Drive Cover Assembly |
2 3 4 NS NS |
540-2470 150-2049 540-2185 150-1174 530-1844 |
Fan/SCSI Cable/Address Select Assembly![]() ![]() ![]() ![]() |
5 | 540-1773 | Base Assembly |
6 | 330-1214 | Rubber Foot |
7 | 300-1105 | 44 Watt Power Supply |
8 9 10 NS 11 |
540-2617 370-1808 340-1967 240-1530 530-1825 |
10GB 8 mm Tape Drive Assembly![]() ![]() ![]() ![]() |
8 9 10 NS 11 |
540-2652 370-1857 340-1967 240-1530 530-1825 |
14GB 8 mm Tape Drive Assembly![]() ![]() ![]() ![]() |
NS | 150-1785 | External Active Terminator, HD50 |
NS | 370-1298 | Blank 8 mm Tape, 106 meters |
NS | 370-1858 | Blank 8 mm Tape, 160 meters |
NS | 370-1318 | Cleaning Kit (obsolete) |
NS | 370-2344 | Cleaning Kit |
NS | 530-1793 | External SCSI Cable, HD50 to HD50, 80 cm |
NS | 530-1836 | External SCSI Cable, HD50 to HD50, 2.0M |
NS | 530-1852 | External SCSI Cable, HD50 to HD50, 4.0M |
NS | 800-4895 |
Desktop Storage Pack Field Service Manual![]() |
