Desktop Storage Module

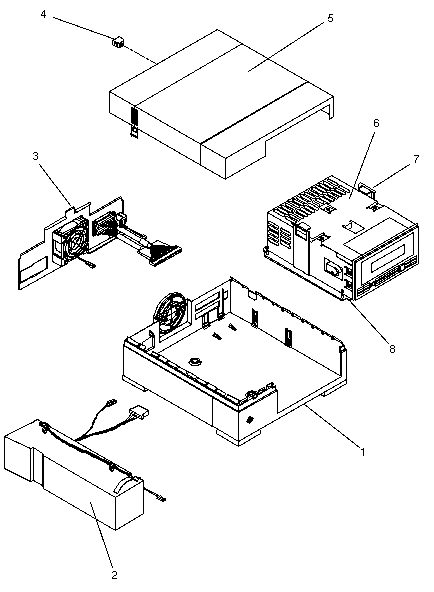

CODE	PART #	DESCRIPTION
1	540-2173	Base Assembly, Tape Drive Option
2	300-1080	60 Watt Power Supply
3 - - - - - - - - - - - - - -	540-2145 150-1557 150-2049 340-2506 501-1468 530-1790 530-2117 530-1844 530-1844 530-1844 530-1844 530-1844 530-2125 540-2142 540-2142	I/O Bracket Assembly Address Select Switch (obsolete) Address Select Switch I/O Bracket I/O PCB and Cable Assembly (obsolete) Address Select Switch Cable (obsolete) Address Select Switch Cable Internal SCSI Cable, -01 Rev 50 = 300 mm Internal SCSI Cable, -01 Rev 51 = 250 mm Internal SCSI Cable, -02 Rev 50 = 240 mm Internal SCSI Cable, -03 Rev 50 = 240 mm Internal SCSI Cable, -03 Rev A = 260 mm Internal SCSI Cable, 308 mm DC Fan Assembly, 17 CFM (obsolete) DC Fan Assembly, 14 CFM
4	540-1982	Top Cover Lockbox Assembly
5	540-2174	Top Cover Assembly, Tape Drive Option
6	370-1405	2.3GB 8 mm Tape Drive, Full-Height, Grey Bezel
6	370-1416	5.0GB 8 mm Tape Drive, Full-Height, Grey Bezel
7	540-2263	Peripheral Removal Handle (replaced 340-2571)
8	340-2547	Tape Drive Mounting Bracket
NS	150-1785	External Active Terminator, HD50
NS	240-1141	#6-32 x 1/4" Tape Drive Mounting Screw
NS	240-1912	#6-32 x 1/4" Tape Drive Mounting Screw (obs)
NS	530-1792	External SCSI Cable, HD50 to DD-50SA, 2.0M
NS	530-1793	External SCSI Cable, HD50 to HD50, 80 cm
NS	530-1829	External SCSI Cable, HD50 to DD-50SA, 1.0M
NS	530-1836	External SCSI Cable, HD50 to HD50, 2.0M
NS	530-1852	External SCSI Cable, HD50 to HD50, 4.0M
	800-6219	Desktop Storage Module Service Manual
	800-7236	Desktop Storage Module Service Manual
