Last updated: December 14, 1999

StorEdge A3500

ARY351A-180G	ARY353A-360G	ARY353A-1008G
72" Rack Option 1 A3000 5 D1000s 10 18.2GB Disks 7200 RPM	72" Rack Option 2 A3000s 7 D1000s 20 18.2GB Disks 7200 RPM	72" Rack Option 2 A3000s 7 D1000s 56 18.2GB Disks 7200 RPM
ARY355A-2160G	ARY381A-364G	ARY381A-1456G
72" Rack Option 2 A3000 15 D1000s 20 18.2GB Disks 7200 RPM	72" Rack Option 1 A3000 5 D1000s 10 36.4GB Disks 10000 RPM	72" Rack Option 1 A3000 5 D1000s 40 36.4GB Disks 10000 RPM

ARY383A-728G	ARY385A-1092G
72" Rack Option 2 A3000s 7 D1000s 20 36.4GB Disks 10000 RPM	72" Rack Option 3 A3000s 15 D1000s 30 36.4GB Disks 10000 RPM

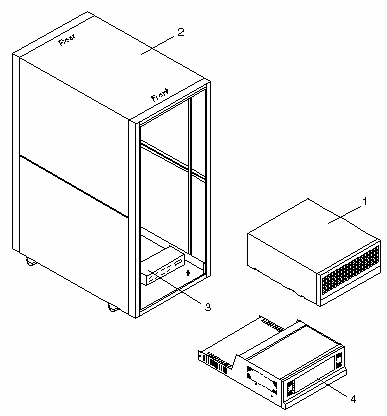

CODE PART # DESCRIPTION

1 540-3761 D1000 8-Drive Chassis with Rack Mount Tray

NS 300-1340 360 Watt Power Supply

NS 370-3291 Empty 1.6" Disk Drive Slot Filler

NS 375-0008 Differential SCSI Controller Board

NS 501-4560 8-Slot SCSI Disk Backplane

NS 540-3323 Fan Tray

NS
-
- 540-3721
370-3414
370-3596 18.2GB 7200 RPM Disk Drive FRU Assembly
18.2GB Disk Drive, Fujitsu MAA3182SC
18.2GB Disk Drive, Seagate ST118273LC

NS
-
- 540-4263
390-0014
390-0020 36.4GB 10000 RPM Disk Drive FRU Assembly
36.4GB Disk Drive, Fujitsu
36.4GB Disk Drive, Seagate

2 540-3707 72" StorEdge Expansion Cabinet, Option ARY030A

3 300-1290 Universal Power Sequencer

NS 530-1619 Grounding Cable

4
4
NS
NS
NS
NS
NS 380-0083
370-2431
370-2436
370-2432
540-3083
370-2434
370-2433 A3000/A3500 SCSI Assembly for the A3500
Chassis with Backplane FRU
Power Supply
Power Supply Fan Assembly
A3500 Differential SCSI Array Controller
Battery Assembly
Differential SCSI Array Controller Fan Assembly

NS 150-1890 Differential Terminator, HD68

NS 530-1883 External SCSI Cable, HD68 to HD68, 20 cm

NS 530-1884 External SCSI Cable, HD68 to HD68, 80 cm

NS 530-1885 External SCSI Cable, HD68 to HD68, 2M

NS 530-1886 External SCSI Cable, HD68 to HD68, 12M

805-2624
805-4980 A1000/D1000 Installation/Operation/Service Manual
StorEdge A3000 Controller Module Guide

CODE	PART #	DESCRIPTION
1	540-3761	D1000 8-Drive Chassis with Rack Mount Tray
NS	300-1340	360 Watt Power Supply
NS	370-3291	Empty 1.6" Disk Drive Slot Filler
NS	375-0008	Differential SCSI Controller Board
NS	501-4560	8-Slot SCSI Disk Backplane
NS	540-3323	Fan Tray
NS - -	540-3721 370-3414 370-3596	18.2GB 7200 RPM Disk Drive FRU Assembly 18.2GB Disk Drive, Fujitsu MAA3182SC 18.2GB Disk Drive, Seagate ST118273LC
NS - -	540-4263 390-0014 390-0020	36.4GB 10000 RPM Disk Drive FRU Assembly 36.4GB Disk Drive, Fujitsu 36.4GB Disk Drive, Seagate
2	540-3707	72" StorEdge Expansion Cabinet, Option ARY030A
3	300-1290	Universal Power Sequencer
NS	530-1619	Grounding Cable
4 4 NS NS NS NS NS	380-0083 370-2431 370-2436 370-2432 540-3083 370-2434 370-2433	A3000/A3500 SCSI Assembly for the A3500 Chassis with Backplane FRU Power Supply Power Supply Fan Assembly A3500 Differential SCSI Array Controller Battery Assembly Differential SCSI Array Controller Fan Assembly
NS	150-1890	Differential Terminator, HD68
NS	530-1883	External SCSI Cable, HD68 to HD68, 20 cm
NS	530-1884	External SCSI Cable, HD68 to HD68, 80 cm
NS	530-1885	External SCSI Cable, HD68 to HD68, 2M
NS	530-1886	External SCSI Cable, HD68 to HD68, 12M
	805-2624 805-4980	A1000/D1000 Installation/Operation/Service Manual StorEdge A3000 Controller Module Guide

StorEdge A3500

ARY350A-90G	ARY350A-545G	ARY352A-180G
1 A3000 5 D1000s 10 9.1GB 7200 RPM	1 A3000 5 D1000s 60 9.1GB 7200 RPM	1 A3000 5 D1000s 20 9.1GB 7200 RPM
ARY352A-763G	ARY354A-1635G	ARY360A-90G
2 A3000s 7 D1000s 84 9.1GB 7200 RPM	3 A3000s 15 D1000s 180 9.1GB 7200 RPM	1 A3000 5 D1000s 10 9.1GB 10000 RPM
ARY360A-545G	ARY362A-180G	ARY362A-763G
1 A3000 5 D1000s 60 9.1GB 10000 RPM	2 A3000s 7 D1000s 180 9.1GB 10000 RPM	2 A3000s 7 D1000s 180 9.1GB 10000 RPM
ARY364A-1635G	ARY370A-91G	ARY372A-182G
3 A3000s 15 D1000s 180 9.1GB 10000 RPM	1 A3000 5 D1000s 10 9.1GB 10000 RPM	1 A3000 7 D1000s 20 9.1GB 10000 RPM
ARY374A-273G	ARY380A-182G	ARY380A-1092G
3 A3000s 15 D1000s 30 9.1GB 10000 RPM	1 A3000 5 D1000s 10 18.2GB 10000 RPM	1 A3000 5 D1000s 60 18.2GB 10000 RPM

ARY382A-364G	ARY384A-546G
2 A3000s 7 D1000s 20 18.2GB 10000 RPM	3 A3000s 15 D1000s 30 18.2GB 10000 RPM

CODE PART # DESCRIPTION

1 540-3760 D1000 12-Drive Chassis with Rackmount Tray

NS 300-1340 360 Watt Power Supply

NS 375-0008 Differential SCSI Controller Board

NS 501-4440 12-Slot SCSI Disk Backplane

NS 540-3323 Fan Tray

NS
-
-
-
-
-
- 540-3720
340-4288
370-3404
370-3413
370-3595
390-0004
540-3024 9.1GB 7200 RPM Disk Drive Assembly/FRU
Protective Plate
9.1GB Disk Drive, IBM DDRS-39130
9.1GB Disk Drive, Fujitsu MAB3091SC
9.1GB Disk Drive, Seagate ST39173WC
9.1GB Disk Drive, Fujitsu MAE3091LC
1.0" Spud Bracket

NS
-
-
-
-
- 540-3966
340-4288
370-3649
390-0005
390-0009
540-3024 9.1GB 10000 RPM Disk Drive Assembly/FRU
Protective Plate
9.1GB Disk Drive, Seagate ST39102LC
9.1GB Disk Drive, Fujitsu MAG3091LC
9.1GB Disk Drive, Seagate ST39103LC
1.0" Spud Bracket

NS
-
-
-
- 540-3721
340-4288
370-3414
370-3596
540-3024 18.2GB 7200 RPM Disk Drive Assembly/FRU
Protective Plate
18.2GB Disk Drive, Fujitsu MAA3182SC
18.2GB Disk Drive, Seagate ST118273LC
1.0" Spud Bracket

NS
-
-
-
- 540-4178
340-4288
390-0002
390-0006
540-3024 18.2GB 10000 RPM Disk Drive Assembly/FRU
Protective Plate
18.2GB Disk Drive, Seagate ST318203LC
18.2GB Disk Drive, Fujitsu MAG3182LC
1.0" Spud Bracket

NS 370-3290 Empty 1.0" Disk Drive Slot Filler

2 540-3707 72" StorEdge Expansion Cabinet, Option ARY030A

3 300-1290 Universal Power Sequencer

NS 530-1619 Grounding Cable

4
4
NS
NS
NS
NS
NS 380-0083
370-2431
370-2432
370-2433
370-2434
370-2436
540-3083 A3000/A3500 SCSI Assembly for the A3500
Chassis with Backplane FRU
Power Supply Fan Assembly
Array Controller Fan Assembly
Battery Assembly
Power Supply
A3500 Differential SCSI Array Controller

NS 150-1890 Differential Terminator, HD68

NS 530-1883 External SCSI Cable, HD68 to HD68, 20 cm

NS 530-1884 External SCSI Cable, HD68 to HD68, 80 cm

NS 530-1885 External SCSI Cable, HD68 to HD68, 2M

NS 530-1886 External SCSI Cable, HD68 to HD68, 12M

805-2624
805-4980 A1000/D1000 Installation/Operation/Service Manual
StorEdge A3000 Controller Module Guide

CODE	PART #	DESCRIPTION
1	540-3760	D1000 12-Drive Chassis with Rackmount Tray
NS	300-1340	360 Watt Power Supply
NS	375-0008	Differential SCSI Controller Board
NS	501-4440	12-Slot SCSI Disk Backplane
NS	540-3323	Fan Tray
NS - - - - - -	540-3720 340-4288 370-3404 370-3413 370-3595 390-0004 540-3024	9.1GB 7200 RPM Disk Drive Assembly/FRU Protective Plate 9.1GB Disk Drive, IBM DDRS-39130 9.1GB Disk Drive, Fujitsu MAB3091SC 9.1GB Disk Drive, Seagate ST39173WC 9.1GB Disk Drive, Fujitsu MAE3091LC 1.0" Spud Bracket
NS - - - - -	540-3966 340-4288 370-3649 390-0005 390-0009 540-3024	9.1GB 10000 RPM Disk Drive Assembly/FRU Protective Plate 9.1GB Disk Drive, Seagate ST39102LC 9.1GB Disk Drive, Fujitsu MAG3091LC 9.1GB Disk Drive, Seagate ST39103LC 1.0" Spud Bracket
NS - - - -	540-3721 340-4288 370-3414 370-3596 540-3024	18.2GB 7200 RPM Disk Drive Assembly/FRU Protective Plate 18.2GB Disk Drive, Fujitsu MAA3182SC 18.2GB Disk Drive, Seagate ST118273LC 1.0" Spud Bracket
NS - - - -	540-4178 340-4288 390-0002 390-0006 540-3024	18.2GB 10000 RPM Disk Drive Assembly/FRU Protective Plate 18.2GB Disk Drive, Seagate ST318203LC 18.2GB Disk Drive, Fujitsu MAG3182LC 1.0" Spud Bracket
NS	370-3290	Empty 1.0" Disk Drive Slot Filler
2	540-3707	72" StorEdge Expansion Cabinet, Option ARY030A
3	300-1290	Universal Power Sequencer
NS	530-1619	Grounding Cable
4 4 NS NS NS NS NS	380-0083 370-2431 370-2432 370-2433 370-2434 370-2436 540-3083	A3000/A3500 SCSI Assembly for the A3500 Chassis with Backplane FRU Power Supply Fan Assembly Array Controller Fan Assembly Battery Assembly Power Supply A3500 Differential SCSI Array Controller
NS	150-1890	Differential Terminator, HD68
NS	530-1883	External SCSI Cable, HD68 to HD68, 20 cm
NS	530-1884	External SCSI Cable, HD68 to HD68, 80 cm
NS	530-1885	External SCSI Cable, HD68 to HD68, 2M
NS	530-1886	External SCSI Cable, HD68 to HD68, 12M
	805-2624 805-4980	A1000/D1000 Installation/Operation/Service Manual StorEdge A3000 Controller Module Guide
