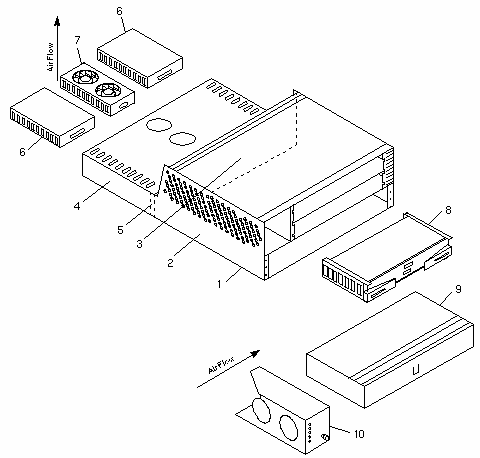

StorEdge A3500FC

CODE	PART #	DESCRIPTION
1 1 2 3 - 4 5 - -	380-0296 370-2431 None None 370-2724 370-2869 None 370-2870 370-2871	StorEdge A3500FC Assembly Chassis with Backplane FRU Logic Chassis Assembly Logic Chassis Backplane Ribbon Cable, Battery to Backplane Power Supply Chassis Assembly Power Supply Chassis Backplane Power Supply Interface Cable Power Supply DC Power Cable
6 7	370-2436 370-2432	Power Supply Power Supply Fan Assembly
8 8	370-3930 540-4026	FC-AL Array Controller without Memory for D1000 1 FC-AL Array Controller with Memory for D1000 1
9	370-2434	Battery Assembly
10	370-2433	Array Controller Fan Assembly
NS	150-1890	Differential Terminator, HD68
NS - - -	370-2437 None None None	Mounting Rail Set (370-2437-02 recommended) Left Rail and Right Rail Rear Mounting Bracket (x2) #8-32 x 7/16" Screw
NS NS	370-2438 370-2439	8MB Processor Memory SIMM 32MB Cache Memory SIMM
NS	370-3907	A3500-FC Front Panel
NS NS	530-1885 537-1006	External SCSI Cable, HD68 to HD68, 2.0M 50/125 Multimode Fibre Optical Cable, 15M
NS - - -	565-1397 370-2724 370-2870 370-2871	Cable FRU Kit Ribbon Cable, Battery to Backplane Power Supply Interface Cable Power Supply DC Power Cable
	805-4980	StorEdge A3000 Controller Module Guide
