| ARY381B-364G | ARY381B-1456G |
|---|---|
| 72" Rack Option 1 A3000 5 D1000s 10 36.4GB Disks 10000 RPM |
72" Rack Option 1 A3000 5 D1000s 40 36.4GB Disks 10000 RPM |
| ARY383B-728G | ARY385B-1092G |
| 72" Rack Option 2 A3000s 7 D1000s 20 36.4GB Disks 10000 RPM |
72" Rack Option 3 A3000s 15 D1000s 30 36.4GB Disks 10000 RPM |

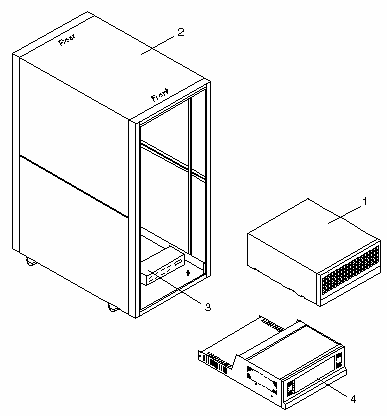

| CODE | PART # | DESCRIPTION |
|---|---|---|
| 1 | 540-3761 | D1000 8-Drive Chassis with Rack Mount Tray |
| NS | 300-1340 | 360 Watt Power Supply |
| NS | 370-3291 | Empty 1.6" Disk Drive Slot Filler |
| NS | 375-0008 | Differential SCSI Controller Board |
| NS | 501-4560 | 8-Slot SCSI Disk Backplane |
| NS | 540-3323 | Fan Tray |
| NS - - |
540-4263 390-0014 390-0020 |
36.4GB 10000 RPM Disk Drive FRU Assembly 36.4GB Disk Drive, Fujitsu36.4GB Disk Drive, Seagate |
| 2 | 540-3707 | 72" StorEdge Expansion Cabinet, Option ARY030A |
| 3 | 300-1290 | Universal Power Sequencer |
| NS | 530-1619 | Grounding Cable |
| 4 4 NS NS NS NS NS |
380-0296 370-2431 370-2432 370-2433 370-2434 370-2436 540-4026 |
A3500-FC Assembly Chassis with Backplane FRU Power Supply Fan AssemblyArray Controller Fan AssemblyBattery AssemblyPower SupplyA3500 FC-AL Array Controller FRU
|
| NS | 150-1890 | Differential Terminator, HD68 |
| NS | 370-3907 | A3500-FC Front Panel |
| NS | 530-1883 | External SCSI Cable, HD68 to HD68, 20 cm |
| NS | 530-1884 | External SCSI Cable, HD68 to HD68, 80 cm |
| NS | 530-1885 | External SCSI Cable, HD68 to HD68, 2M |
| NS | 530-1886 | External SCSI Cable, HD68 to HD68, 12M |
| NS | 537-1006 | 50/125 Multimode Fibre Optical Cable, 15M |
| 805-2624 805-4980 |
A1000/D1000 Installation/Operation/Service Manual StorEdge A3000 Controller Module Guide |
| ARY360B-90G | ARY360B-545G | ARY362B-180G |
|---|---|---|
| 72" Rack Option 1 A3000 5 D1000s 10 9.1GB Disks 10000 RPM |
72" Rack Option 1 A3000 5 D1000s 60 9.1GB Disks 10000 RPM |
72" Rack Option 2 A3000s 7 D1000s 20 9.1GB Disks 10000 RPM |
| ARY374B-273G | ARY380B-182G | ARY380B-1092G |
| 72" Rack Option 3 A3000s 15 D1000s 30 9.1GB Disks 10000 RPM |
72" Rack Option 1 A3000 5 D1000s 10 18.2GB Disks 10000 RPM |
72" Rack Option 1 A3000 5 D1000s 60 18.2GB Disks 10000 RPM |
| ARY382B-364G | ARY384B-546G |
|---|---|
| 72" Rack Option 2 A3000s 7 D1000s 20 18.2GB Disks 10000 RPM |
72" Rack Option 3 A3000s 15 D1000s 30 18.2GB Disks 10000 RPM |
| CODE | PART # | DESCRIPTION |
|---|---|---|
| 1 | 540-3760 | D1000 12-Drive Chassis with Rackmount Tray |
| NS | 300-1340 | 360 Watt Power Supply |
| NS | 375-0008 | Differential SCSI Controller Board |
| NS | 501-4440 | 12-Slot SCSI Disk Backplane |
| NS | 540-3323 | Fan Tray |
| NS - - - - - |
540-3966 340-4288 370-3649 390-0005 390-0009 540-3024 |
9.1GB 10000 RPM Disk Drive Assembly/FRUProtective Plate9.1GB Disk Drive, Seagate ST39102LC9.1GB Disk Drive, Fujitsu MAG3091LC9.1GB Disk Drive, Seagate ST39103LC1.0" Spud Bracket |
| NS - - - - |
540-4178 340-4288 390-0002 390-0006 540-3024 |
18.2GB 10000 RPM Disk Drive Assembly/FRUProtective Plate18.2GB Disk Drive, Seagate ST318203LC18.2GB Disk Drive, Fujitsu MAG3182LC1.0" Spud Bracket |
| NS | 370-3290 | Empty 1.0" Disk Drive Slot Filler |
| 2 | 540-3707 | 72-inch StorEdge Rack |
| 3 | 300-1290 | Universal Power Sequencer |
| NS | 530-1619 | Grounding Cable |
| 4 4 NS NS NS NS NS |
380-0296 370-2431 370-2432 370-2433 370-2434 370-2436 540-4026 |
A3500-FC Assembly Chassis with Backplane FRU Power Supply Fan AssemblyArray Controller Fan AssemblyBattery AssemblyPower SupplyA3500 FC-AL Array Controller FRU |
| NS | 150-1890 | Differential Terminator, HD68 |
| NS | 370-3907 | A3500-FC Front Panel |
| NS | 530-1883 | External SCSI Cable, HD68 to HD68, 20 cm |
| NS | 530-1884 | External SCSI Cable, HD68 to HD68, 80 cm |
| NS | 530-1885 | External SCSI Cable, HD68 to HD68, 2M |
| NS | 530-1886 | External SCSI Cable, HD68 to HD68, 12M |
| NS | 537-1006 | 50/125 Multimode Fibre Optical Cable, 15M |
| 805-2624 805-4980 |
A1000/D1000 Installation/Operation/Service Manual StorEdge A3000 Controller Module Guide Manual |
